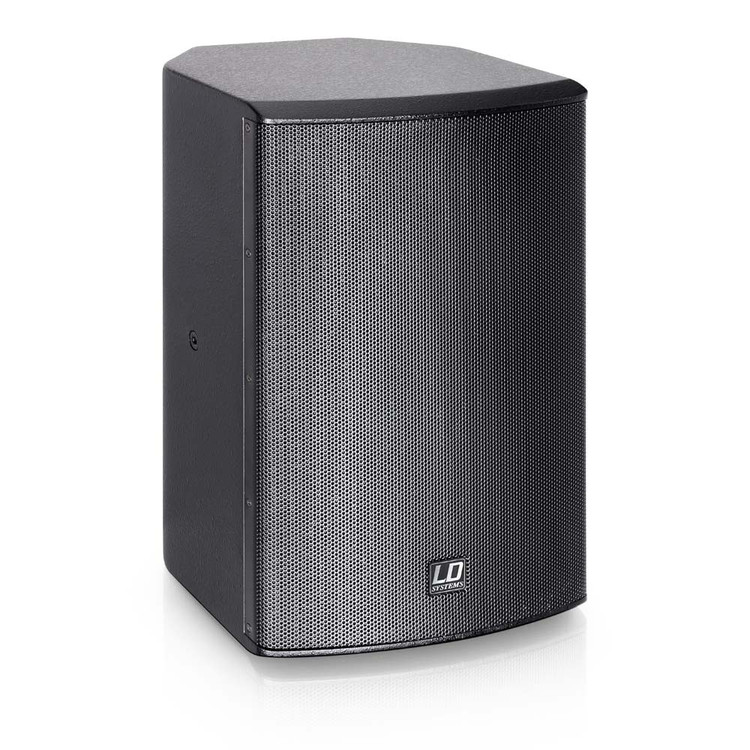

The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.
The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
- Compact active 2-way installation monitor
- Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
- 8" custom-made woofers
- 1" high frequency driver with a 60° x 60° dispersion angle
- Integrated Class AB power amplifier with 80 watts (RMS)
- Switchable automatic power save mode
- Mounting bracket and M6 fixing points for a wide variety of installation possibilities
| Product type | Installation Loudspeakers |
| Type | Wall-mounted Loudspeaker |
| Low/mid Woofer dimensions | 8 " |
| Woofer dimensions (mm) | 203.2 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 " |
| HF driver dimention (mm) | 25 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Power amplifier (Class A) | Class A/B |
| Dispersion (H x V) | 60° x 60 ° |
| System Power (RMS) | 80 W |
| Frequency response | 50 - 20000 |
| Max. SPL | 114 dB |
| Protection circuits | HF Driver |
| Protection circuits | over voltage |
| Controls | mains switch (on/off) |
| Controls | volume |
| Indicators | overload |
| Indicators | Power |
| Line input connectors | 6.3 mm jack |
| Line input connectors | XLR |
| Line output connectors | XLR |
| Power supply | transformer |
| Operating voltage | 220 V AC - 240 V AC, 50-60 Hz |
| Cabinet material | 12 mm MDF |
| Cabinet surface | texture paint |
| Cabinet colour | Black |
| Cabinet construction | Bass Reflex |
| Width | 274 mm |
| Height | 410 mm |
| Depth | 243 mm |
| Weight | 8.5 kg |
| Accessories (included) | Wall bracket |
