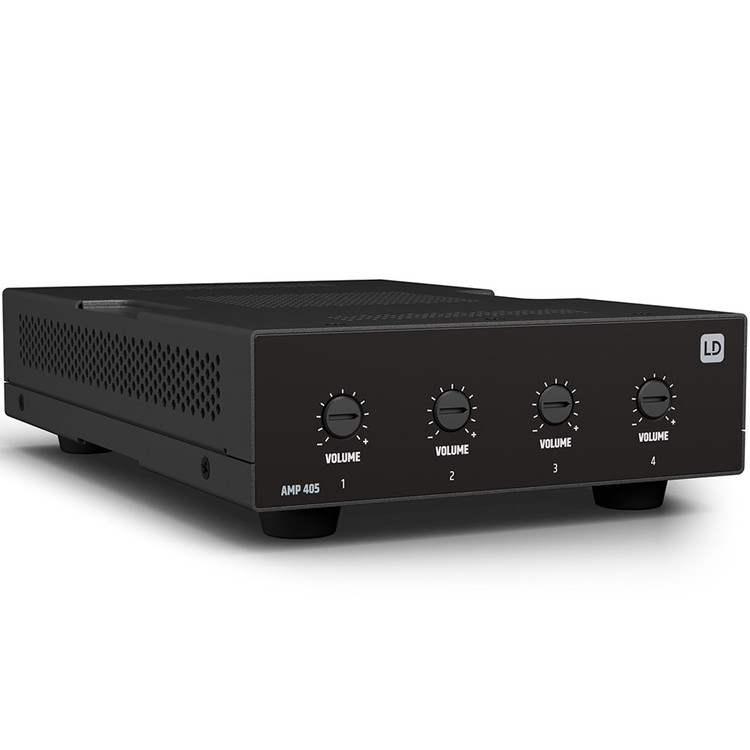

Part of the TICA® series, AMP405 combines compact size, passive cooling, and high efficiency – ideal for a wide range of audio installation applications.

The highly efficient four-channel 50 W Class-D amplifier can drive low-impedance loudspeakers in different zones.

Its tiny 142 × 44 × 222 form factor and included mounting plates allow it to be installed discreetly almost anywhere: behind screens, under tables, or even in air-handling spaces and above plenum ceilings. Alternatively, it fits into a 1/3 19? rack. Use the optional rack tray to slot up to three TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

Terminal strip connections on the balanced line input and speaker output make wiring easy.

With remote-control connectivity to put the power amplifier into standby mode at any time, even when it’s hidden. Optional auto-standby saves power when no audio is running.

The perfect solution for professional installers and users looking for a compact, highly efficient, and easy-to-integrate solution.

Professional mini amplifier
4 × 50 W Class-D amplifier 4 Ohm
Small form factor 1/3 19? rack, 1U
Silent operation with passive cooling
Connect to third-party control for remote standby
External 100–240 V power supply
Run in four-channel mode or bridge for two channels @ 100 W in high-power mode
Mounting plates for flexible and inconspicuous installation, even above suspended ceilings
Auto-standby to save power
Four balanced line inputs with parallel input option
Four loudspeaker outputs with terminal strips
User-friendly front panel with signal, clip, and protection LEDs
Optional rack tray for combining with other TICA® series products

Product type	Installation power amplifier
Balanced line inputs	4
Powered outputs	4 with output mode selector (Stereo / Parallel / High Power Mode)
Cooling	Convection

Input area

Nominal input sensitivity	0 dBu (Volume Max.)
Nominal input clipping	18 dBu (Volume 9 o´clock)
Input impedance	12 Ohm(s)
CNRR	> 48 dB (0 dBu 1 kHz)
Number of input connectors	4
Input Connector	3-pin terminal block (3.81 mm)

Digital Specifications

DSP Crossover LPF (switchable for CH1-2)	20 Hz - 125 Hz
DSP Crossover HPF (switchable for CH3-4)	125 Hz - 20 kHz
AD/DA converter resolution	24 bit
AD/DA converter sampling rate	48 kHz
Latency	< 2 ms

Amplifier Output

Type1	Class D
Output modes	Stereo, parallel, high power mode (ST / PAR / HPM)
Amplifier Outputs	2.1 with 2 channels (ST, PAR) and 1 channel (HPM)
Amplifier Outputs	4 channels (ST, PAR) / 2 channels (HPM)
Number of output connectors	2
Connector	4-pin terminal block. Pitch 5.08mm
RMS Power ( W )	4 x 50 W @ 4 ohm (ST, PAR) / 2 x 100 W @ 2 ohm (Continuous sine wave, 1 kHz, 10 sec)
Power ( Peak ) (W)	2 x 55 W @ 4 ohm (ST, PAR) / 1 x 110 W @ 2 ohm (Continuous sine wave, 1 kHz, 4 ms)
Minimum load impedance	4 ohm (ST, PAR) / 2 ohm (HPM)
Frequency response (-1 dB)	20 Hz - 20 kHz
THD + N	< 0.02 % (-6 dBu, 20 kHz BW)
SNR	> 100 dB (17 dBu, Volume center, 20 kHz BW, A-weighted)
Max. Gain	22 dB
Protection circuits	DC
Protection circuits	Short circuit
Protection circuits	Undervoltage
Protection circuits	over-current
Protection circuits	thermal overload

3rd Party Control

Remote Standby	GPI port for external momentary buttons
Remote Standby connector	2-pin black terminal block, pitch 3,5mm

Power supply

Power supply type	External SMPS
Operating voltage	100 V AC - 240 V AC, 50 - 60 Hz
Secondary Voltage	24 V DC
Secondary Current	5 A
Secondary connector	2-pin terminal block (5.08 mm)
Fuse	No
Primary Connector	IEC
Safety class	Class 3
Max. power consumption	230 W (sine 1 kHz with 4 x 4 ohm load)
Idle power consumption	8.5 W (no signal input)
Standby power consuption	< 1 W
Operating temperature ( non-condensing )	0°C - 40°
Max. Humidity during operation	85 %

General data

Time to Auto-standby	20 Min.
Standby wake up time	3 seconds
Standby wake up threshold	-33 dBu
Material	Plastic Front panel
Material	Steel
Dimensions (W x H x D) ( height with rubber feet )	142 mm x 53 mm x 222 mm
Weight	1,84 kg
Accessories (included)	External SMPS
Accessories (included)	Mounting plates for surface mount applications
Accessories (included)	Terminal blocks for electrical connections.
