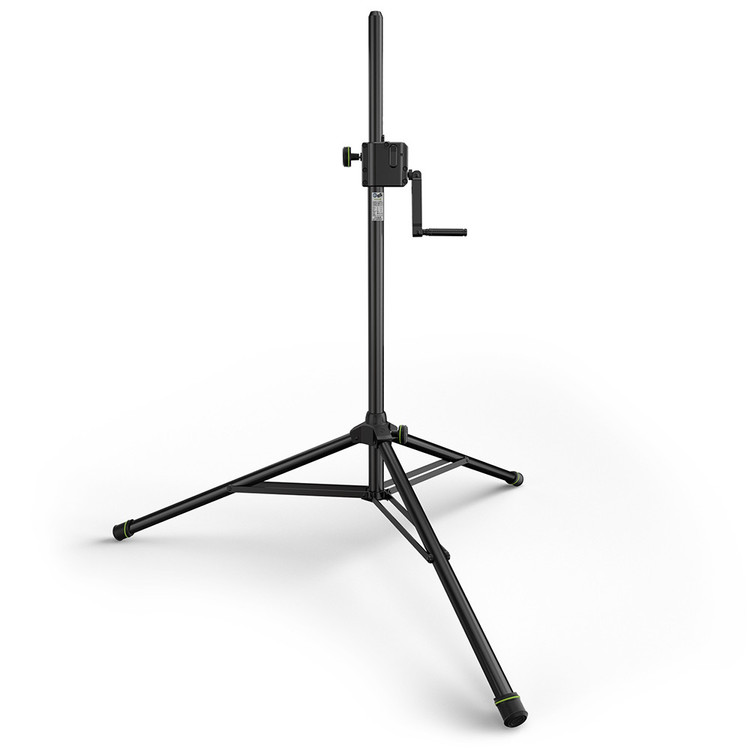

Wind-up speaker stand with automatic lock pin mechanism
The Gravity® SP 5322 B is a robust speaker stand with a convenient hand crank mechanism for professional audio and lighting applications. Crafted from durable steel, its stout construction is evident in every detail. The tripod base, reinforced with double bracing, is anchored by a sturdy cast zinc sleeve, ensuring stability under heavy loads. Versatility is key, with an integrated M10 thread pressed into the 35-mm-diameter extension tube which allows seamless conversion to a lighting stand.
What sets this stand apart is its convenient hand crank mechanism, which facilitates effortless adjustment of speakers or lighting trusses. The retractable crank handle not only ensures smooth operation, but also contributes to a sleek, clutter-free design.
Safety is paramount: the innovative lock pin mechanism is equipped with a convenient push-button feature to prevent any unintended movement of the extension tube. For added peace of mind, a locking screw further enhances stability and security.
Capable of supporting up to 60 kg and offering adjustable height ranging from 1,330 mm to 2,100 mm, the Gravity® SP 5322 B is tailored for professional-grade applications.
- Wind-up mechanism with retractable crank for easy raising and lowering
- Lock pin mechanism with push-button to prevent uncontrolled movements
- Locking screw for additional safety
- Pressed-in M10 thread for use as a light stand
- Folding tripod construction with double struts
- Durable foot suspension made of cast zinc
- 60 kg load capacity
- Height-adjustable from 1,330 mm to 2,100 mm
General
| Height adjustment | Crank with push button and locking screw |
| Height adjustment range | 1,330 - 2,100 mm |
| Mounting | 35 mm |
| Mounting | M10 |
| Maximum load | 60 kg |
| Material | Plastic |
| Material | Steel |
| Material | Zinc alloy |
| Coating | Powder coated |
| Colour | Black |
Base/foot
| Type | Tripod |
| Material | Steel |
| Material | Zinc alloy |
| Coating | Powder coated |
| Colour | Black |
| Footprint (Ø) | 1,500 mm |
Gravity® rings
| Number of Gravity® rings | 5 x 30 mm |
| Black ring set included | Yes |
Transport dimensions
| Width | 160 mm |
| Height | 1,190 mm |
| Depth | 170 mm |
Dimensions & weight
| Width | 160 - 1,600 mm |
| Height | 1,330 - 2,100 mm |
| Depth | 170 - 1,600 mm |
| Weight | 7.74 kg |
