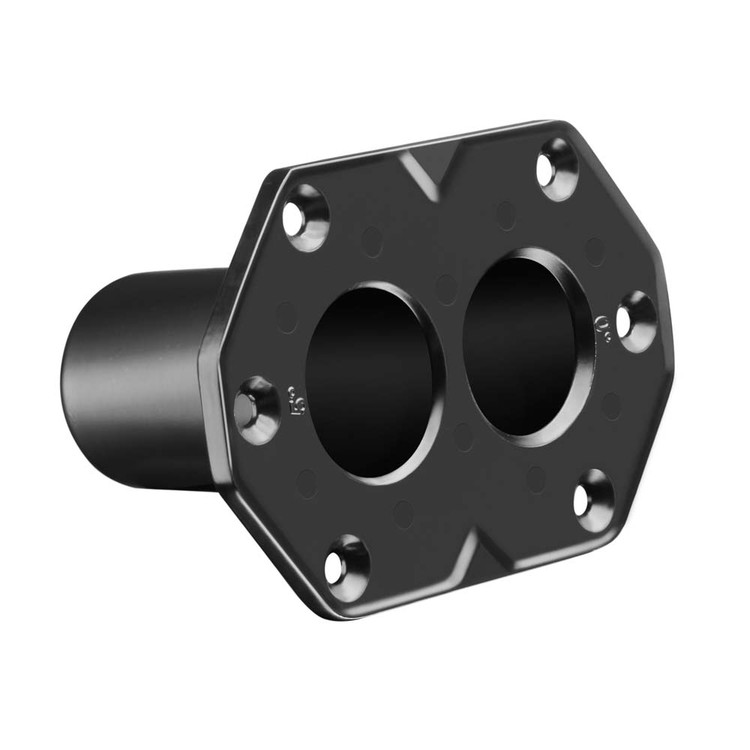

The SM7DT is a mounting flange with 0° and 5° horizontal tilt for loudspeaker cabinets on speaker stands. Thus, the dispersion of the high frequencies can be controlled and adjusted according to the location. With the 5° tilt, the speaker can be tilted forwards as well as tilted to the rear (depending on the direction of installation of the flange). The flange has a 75 mm installation depth and is made of black powder-coated aluminium and is suitable for a 35 mm tube diameter.
- Stand mounting flange with 0° and 5° tilt
- For tube diameter of 35 mm
- For horizontal forward or backward tilted orientation
- controls the high frequency dispersion
- made from black powder-coated die-cast aluminium
- Dimensions 135 x 90 mm / Built-in Depth 75 mm
| Product type | Speaker Construction Accessories |
| Type | Cabinet Flange |
| Material | Die-cast aluminium |
| Surface | Powder coated |
| Color | Black |
| Suitable for tube diameter | 35 mm |
| Installed depth / installation height | 75 mm |
| Tiltable | in two increments |
| With screw clamp | No |
| Max. load capacity | 30 kg |
| Weight | 0.371 kg |
