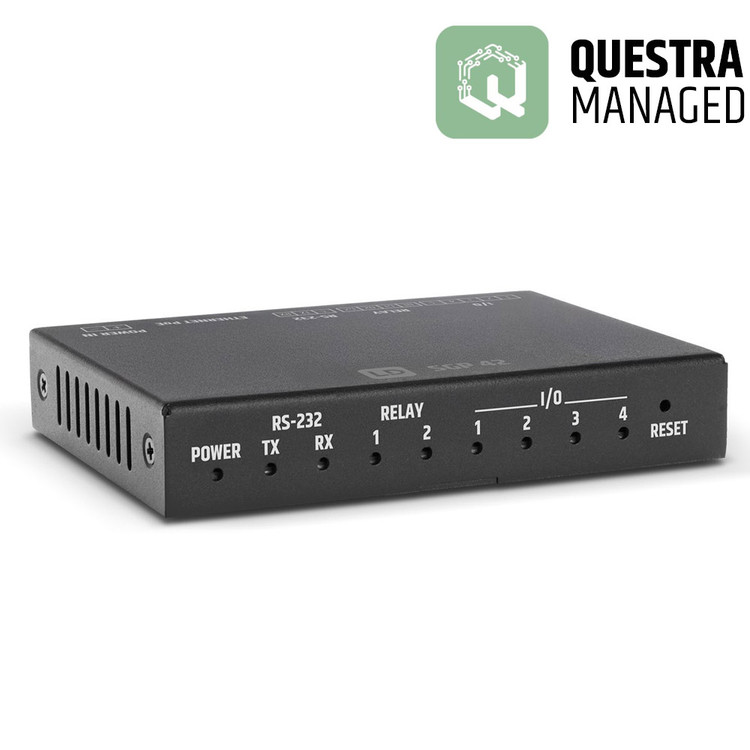

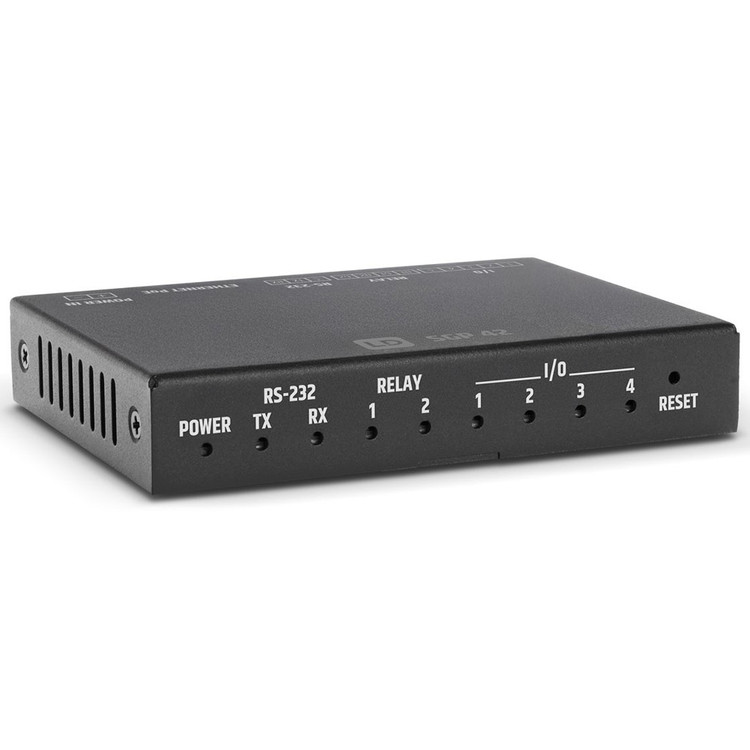

The SGP 42 from the TIVA® series is a compact Ethernet-based I/O interface designed for flexible control and automation of a wide range of devices in professional environments. It enables easy integration of buttons, sensors, indicators, and serial equipment via digital GPIOs, relay outputs, and an RS232 interface.
SGP 42 is fully integrated into the QUESTRA platform, allowing centralized configuration, remote control, and seamless system-wide connectivity.
The device offers versatile input and output options including four configurable digital GPIOs (usable as inputs or TTL outputs), two relay outputs, and one RS232 port. These interfaces support automated sequences such as media control, lighting, and building functions. A typical use case: presence detectors or wall buttons can trigger predefined scenes such as powering up a projector, lowering a screen, and dimming the room lights, all via network control.
Its compact design and included mounting accessories allow for flexible installation, whether on surfaces, in technical enclosures, or mounted to walls.
Ideal for situations where compact network-enabled control hardware with flexible I/O is required and a simple reliable solution for professional automation tasks is expected.

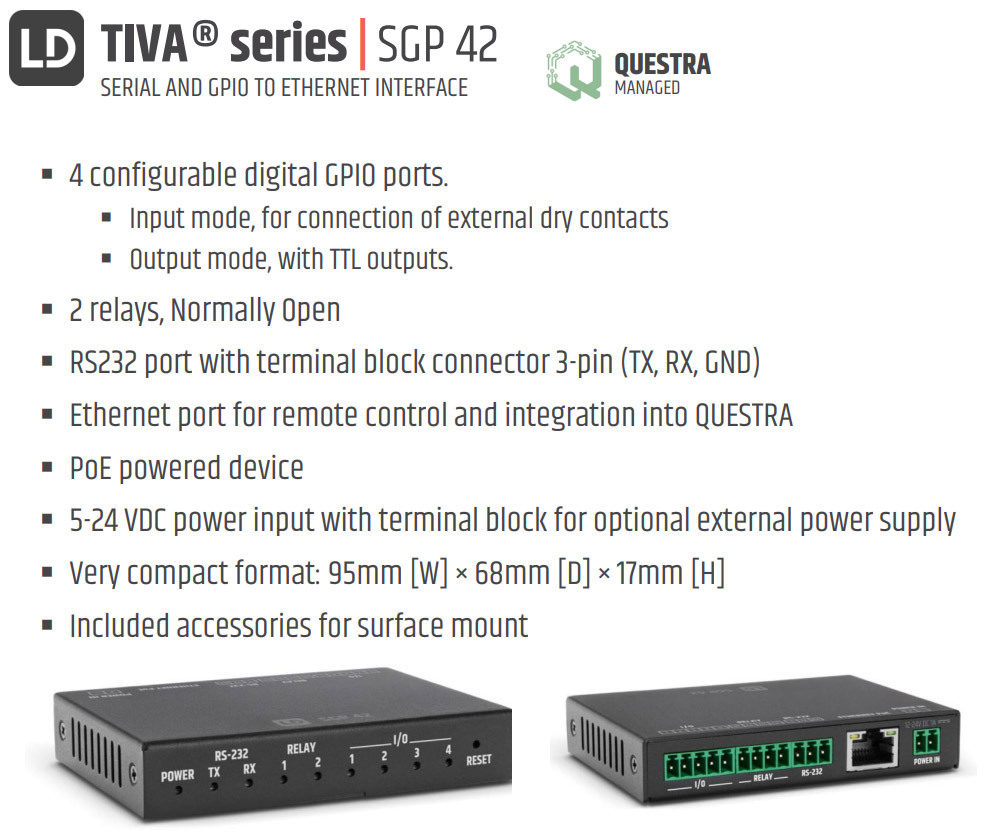

- Compact Ethernet-based I/O interface for control and automations
- Fully integrated with the QUESTRA platform for remote third-party configuration
- 4 configurable digital GPIO ports
- GPIO input mode: Dry contact triggers for buttons or presence sensors
- GPIO output mode: TTL-level signals for indicators or external devices
- 2 relay outputs, Normally Open (NO)
- RS232 port with 3-pin terminal block (TX, RX, GND)
- Ethernet port with PoE support
- 12–24 VDC input via terminal block for optional external power supply
- Status LEDs for GPIO, relay, and RS232 activity monitoring
- Ultra-compact format (W/D/H): 95 mm × 68 mm × 17 mm
- Included accessories for surface mount
General
| Material |
Metal |
| Coating |
Powder coated |
| Colour |
Black |
Serial Interface
| Baud rate |
115,200 |
| Baud rate |
14,400 |
| Baud rate |
19,200 |
| Baud rate |
2,400 |
| Baud rate |
38,400 |
| Baud rate |
4,800 |
| Baud rate |
56,000 |
| Baud rate |
57,600 |
| Baud rate |
9,600 |
| RS-232 communication mode |
Full duplex |
| RS-485 communication mode |
Half duplex |
Network support
| Connectivity type |
Ethernet |
| LAN connector type |
RJ-45 socket |
| LAN data rate |
100 Mbit/s |
| LAN data rate |
10 Mbit/s |
External control
| Interfaces for ext. control |
IR transmitter (IR blaster) |
| IR blaster output level |
5 V |
Mains operation
| Operation voltage |
100 V AC - 240 V AC / 50 - 60 Hz |
| Power supply type |
Switched-mode power supply (SMPS) |
| Rated power |
0.48 W |
Environmental
| Ambient temperature |
0 - 40 °C |
| Maximum air humidity (non-condensing) |
90 % |
| ESD protection per IEC 61000-4-2 (non-contact) |
8 kV |
| ESD protection per IEC 61000-4-2 (contact) |
4 kV |
Dimensions & weight
| Width |
95 mm |
| Height |
17 mm |
| Depth |
68 mm |
| Weight |
181 g |
