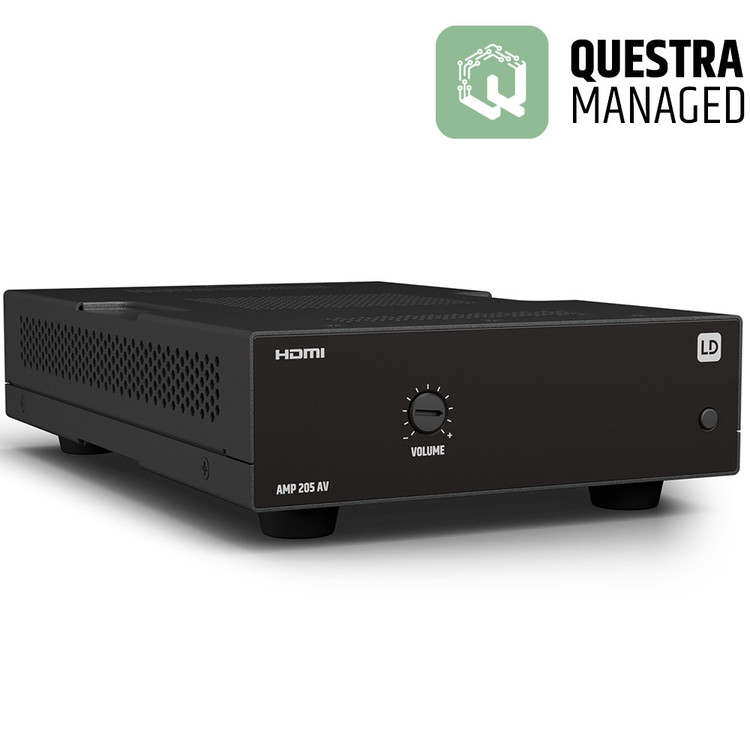

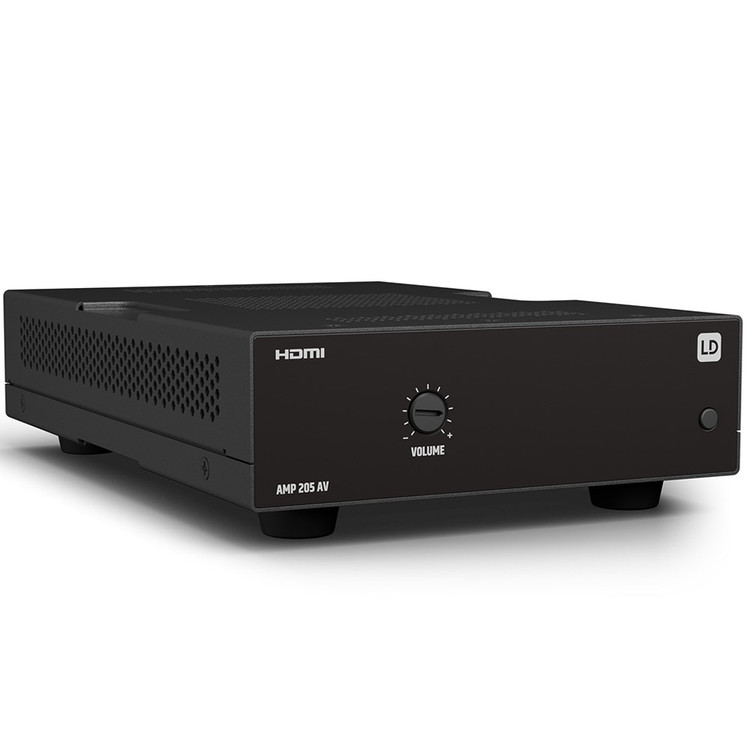

The LD Systems AMP 205 AV is the perfect complement to deliver sound from an AV system. Just connect your video source and it extracts the audio and delivers stereo audio to your loudspeakers. An HDMI pass though connection makes connection to your display device easy.
Powered by a highly efficient 2x50W Class-D amplifier, it features 4 Ohm outputs and a user-friendly front panel, equipped with signal, clip, and protection LEDs.
Its tiny form factor (142 x 44 x 222) and included mounting plates allow it to be installed discreetly almost anywhere; behind screens, under tables or even in air-handling spaces and above plenum ceilings. Alternatively, it fits into 1/3 19 inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.
The AMP 205 AV uses an external 24V power supply. Terminal block connections for the analogue outputs and GPIO connections make wiring easy.
Remote control connectivity for third-party devices lets you select between HDMI input and HDMI out (ARC). You can also adjust volume on either channel, and put the power amplifier into standby mode at any time, ideal for when the amp is hidden away. Optional auto-standby saves power when no audio is running.
The perfect solution for professional installers and users looking to deliver higher performance audio for the video systems.
Professional mini amplifier with HDMI Audio de-embedder
HDMI In- and Out and stereo line outputs
2 x 50W Class-D amplifier with low impedance outputs
Compact form factor and passive cooling
Remote source select, standby and volume control
External 100-240V power supply
Mounting plates for flexible inconspicuous installation, even above suspended ceilings
Auto standby to save power
Balanced line output and loudspeaker output on terminal blocks
User-friendly front panel with signal, clip and protection LEDs.
Optional rack tray for combining with other TICA® series products
Product type
Installation power amplifier and HDMI Audio-Deembedder
Line inputs
0
Line outputs
2
Line output connectors
Balanced line outputs
Line output connectors
Pitch 3.81 mm terminal block (3-pin)
Loudspeaker outputs
2 with output mode selector (Stereo / High Power Mode)
Cooling
Convection
HDMI specifications
Supported color format
RGB
Supported color format
YUV420
Supported color format
YUV422
Supported color format
YUV444
Max. data rate
48 Gbit/s
Resulution range
Up to 4K2K 60Hz
Color bit depth
8 bits per color
Chroma Sampling
4 : 4 : 4
HDMI standards
HDCP 1,4 - 2,3
HDMI standards
HDMI 2,1
Number of HDMI Inputs
1
HDMI Input Connector
1 female HDMI type A
Number of HDMI Outputs
1
HDMI Output Connector
1 female HDMI type A
Standby wake up threshold
7 seconds
Line output
THD + N
> 0.006%
SNR (A)
> 100 dB
Frequency range
15 Hz - 20 kHz (-0,5 dB)
Output level
+15 dBu (0dBFS / 1kHz)
3rd Party Control
Main Volume (VCA)
10 kOhm (Linear Taper) External Potentiometer
Main Volume (VCA)
Pitch 3,5 mm terminal block (3-Pin)
Source select
Pitch 3,5 mm terminal block (3-Pin)
Power Standby
External momentary button
Power Standby
Pitch 3.5mm terminal block (2-pin)
Amplifier Output
Type
Class D
Output modes
High Power Mode (ST/ HPM)
Output modes
stereo
Amplifier Outputs
2- channel (STEREO) / 1-Channel (HPM)
Connector
4 - pin terminal block (pitch 5.08mm)
THD + N
< 0.05 %
SRN ( A )
< 100 dB
RMS Power ( W )
1 x 100 W @ 2 ohm (Continuous sine wave 1 kHz 10 sec)
RMS Power ( W )
2 x 50 W @ 4 ohm (ST)
Minimum load impedance
2 Ohms (HPM)
Minimum load impedance
4 Ohm (ST)
Frequency response
15 Hz - 20 kHz (-0,5 dB)
Protection circuits
DC protection
Protection circuits
Short circuit
Protection circuits
over-current
Protection circuits
thermal overload
Power supply
Type1
External SMPS
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Fuse
0
Power Supply Secondary
24 V DC
Secondary Current
3,5 A
Secondary connector
Terminal block 5.08 mm 2-pole
Primary Connector
IEC
Safety class
Class 3
Max. power consumption
155 W ( 0 dBFS, sine 1 kHz with 2 x 4 Ohm load )
Idle power consumption
6.8 W
Standby power consuption
< 1.5 W
Mains Inrush Current
2.4 A @ 230 V AC
Operating temperature ( non-condensing )
0°C - 40°C; < 85% humidity, non condensing
General data
Material
Plastic Front panel
Material
Steel chassis
Dimensions (W x H x D) ( height with rubber feet )
