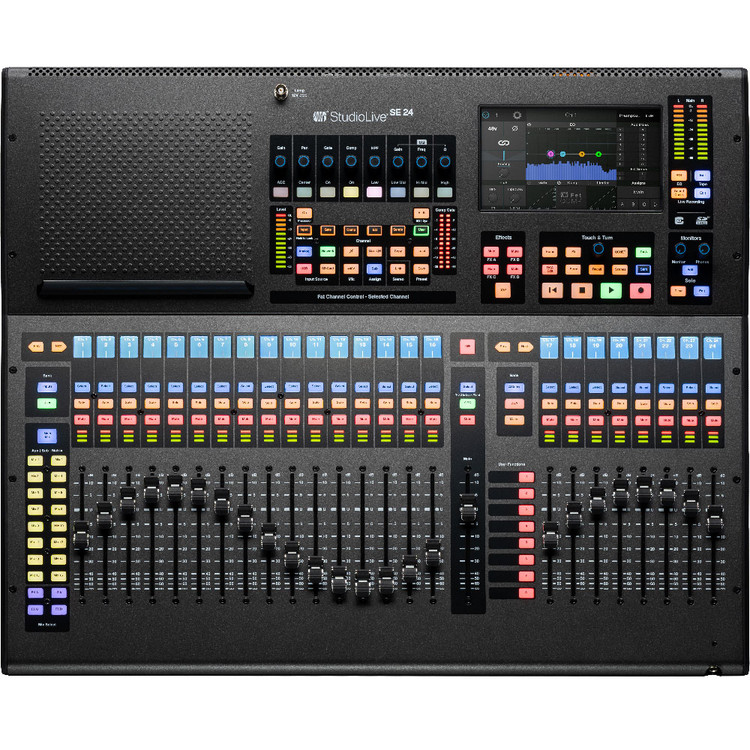

StudioLive® SE 24 is a small-format digital mixer in a well-equipped low profile featuring 32 digitally recallable XMAX preamps, extensive mixing capabilities, studio-grade audio quality, flexible bus configuration, and advanced integrated recording capabilities – plus a full suite of powerful software featuring Studio One Pro.
The StudioLive SE 24 is a 40-channel small-format digital mixer with a full complement of analogue I/O packed into a 25-fader chassis. The split-fader workflow options let you manage your mix in two efficient fader layers while providing access to your mix outputs on eight additional faders. Equipped with 32 studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus, the StudioLive SE 24 makes your mixes sound better, faster. Managing large channel counts has never been easier thanks to 16 FlexMixes that can be configured as subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus making it easy to create the perfect front- and side-fill mixes for large venues or producer mixes for broadcast applications. You also get 24 DCA groups, 4 dedicated subgroup mixes, and 4 FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.
When you’re ready to integrate backing tracks, record your show, or mix your next album, the StudioLive SE 24 has you covered with an integrated, continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder plus a complete suite of integrated software that features both Capture multitracking and virtual soundcheck software as well as a perpetual license of Studio One Pro. Each channel can easily switch between analogue, USB, SD, and AVB sources, making integrating your analogue and digital gear easier than ever before.
More than a mixer, StudioLive SE 24 is part of a complete ecosystem of hardware and software. Remotely control your mixer or dial in an Offline mix with Universal Control from your computer or tablet. Launch PreSonus Metro and you can control your mixer over the internet from anywhere in the world with real-time audio monitoring. Built-in, Milan-certified AVB audio networking, makes it easy to integrate with stage boxes, personal monitor mixers, switches, and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.
- FEATURES
Integrated Multitrack Recording
-
- Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
- One-click Virtual Soundcheck with Capture
- Seamless compatibility with Studio One Pro and leading DAWs
• Pristine Studio Sound on Stage
-
- 33 XMAX-Remote preamps for transparent analogue tone and digital recall
- 32-bit floating-point DSP processing
- 115 dB A/D–D/A converters with ultra-low jitter clocking
• Expanded Routing and I/O
-
- 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
- AVB networking with StudioLive Stage Boxes and Milan-compatible gear
- Four dedicated effects buses, four subgroups, and 24 DCAs
• Advanced Fat Channel Processing
-
- Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
- All 7 EQs and 8 Compressors from the Fat Channel Collection included
- Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
- Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping
• Metro™ Remote Access and Universal Control
-
- Control every aspect of your mix remotely—from routing to effects
- Provide technical support and reconfiguration remotely
- Use QMix®-UC for personal monitor mixing from mobile devices
• Mixing Comfort and Control
-
- 25 touch-sensitive motorized faders deliver smooth automation and tactile mixing
- Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort
- Portable, flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.
- Flexible onboard 32 mic/line inputs with recallable XMAX preamps, 16 mix outputs, and dedicated Main LR outputs plus a Mono sum output.
- 25 Fully recallable touch-sensitive motorized faders.
- Milan-certified AVB audio networking ecosystem makes it easy to connect PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and AVB-D16 Dante bridge.
- Continuously bidirectional 64x64 USB 2.0 interface with deep integration and included PreSonus Capture multitracking software with automated Virtual Soundcheck.
- 7 State-Space modeled EQ and 8 vintage-inspired compressors options available on every input and bus
- Onboard 34x34 multitrack SD Card recording.
- Take charge of your mix with 16 FlexMixes (aux mixes, subgroups, or matrix mixes), 4 dedicated FX mixes, 4 dedicated subgroups, and 24 DCA Groups.
- Free Universal Control lets you remotely control your mixer, dial in mixes of line, or listen in and control your mixer over the Internet using PreSonus Metro.
- PreSonus Metro lets you remotely control your mixer from anywhere with an Internet connection and monitor your audio in real time.
- Free QMix-UC for iPhone and Android with easy-to-use Wheel of Me puts musicians’ monitor mixes in the palms of their hands.
- Includes both Studio One Pro DAW and Capture Multitrack software
- Optional Dante support with AVB-D16
- 3-year warranty
