Product Overview

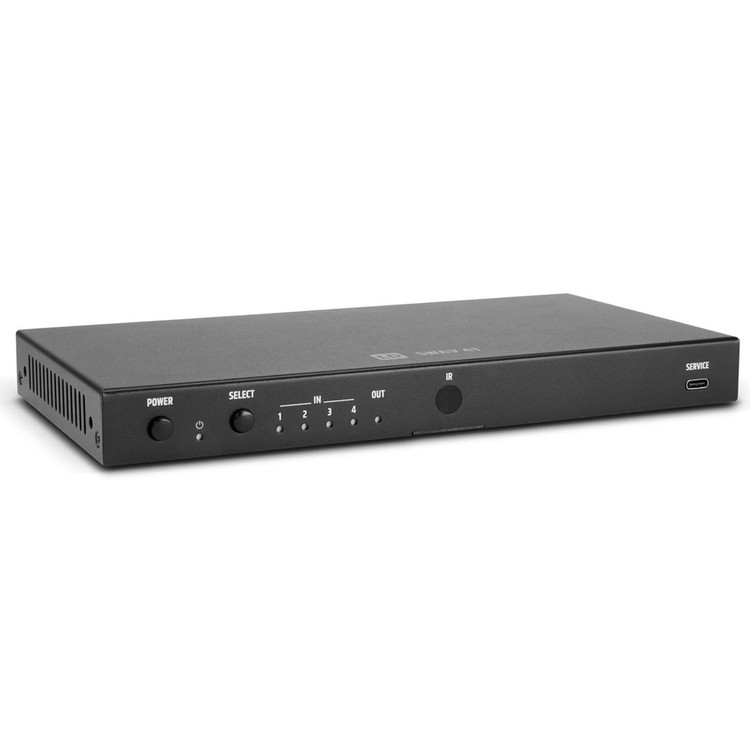

The SWAV 41 is part of the TIVA® Series and serves as a powerful 8K HDMI™ 4x1 switcher with audio extraction, designed to reliably consolidate and manage multiple AV sources.

It supports 8K60 and 4K120 resolutions, is fully HDCP 2.3 compliant, and offers compatibility with advanced video formats such as HDR10+, Dolby Vision, VRR, and ALLM.

With digital and analog audio outputs featuring gain control and flexible control options via Ethernet, IR, or directly on the device, the SWAV 41 is ideally suited for professional AV applications where HDMI sources need to be switched and audio processed separately.

The SWAV 41 is fully integrated into the QUESTRA platform, allowing centralized configuration and monitoring.

Thanks to its compact and installation-friendly design including mounting accessories, the device can be flexibly installed in racks, under desks, or inside AV enclosures.

Perfect for professional presentation environments where high-resolution video, reliable source management, and discrete audio processing are required.

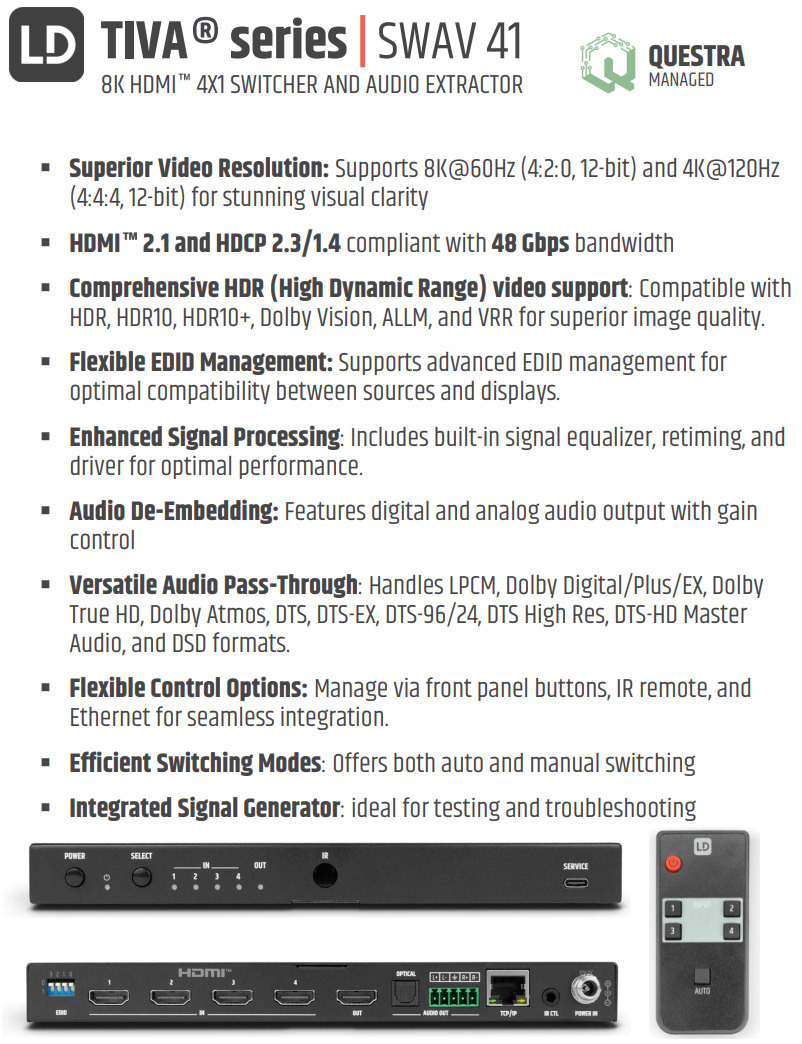

Selects one of four HDMI™ sources for a single display
Fully integrated with the QUESTRA platform
Supports up to 8K60 and 4K120 resolutions with HDMI 2.1
HDCP 2.3 compliant for secure content playback
HDR, HDR10+, Dolby Vision, ALLM, and VRR compatible
Independent EDID settings per input for format consistency
Built-in signal equalizer, retimer, and driver
Audio de-embedding with digital and analog outputs with gain control
Dolby Atmos, DTS-HD, and hi-res audio pass-through
Selectable audio output modes for 2.0, 5.1, or 7.1 channels

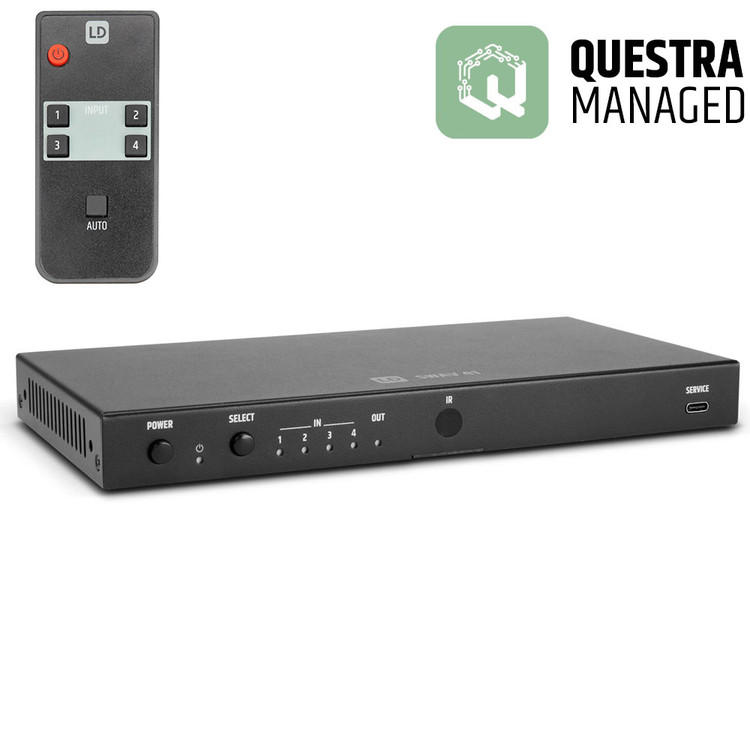

Control via front panel buttons, IR remote, and Ethernet
Auto and manual input switching modes
Integrated signal generator for line testing and setup verification
Fanless, silent operation with efficient power design
Includes mounting hardware for flexible installation
Firmware upgradable via Ethernet for future enhancements
12 VDC power supply included

General

Material	Metal
Colour	Black

Inputs

Number of HDMI inputs

Outputs

Number of line outputs	1
Number of HDMI outputs	1
Number of S/PDIF outputs	1

Video Performance

Video standards	HDMI 2.1
HDR standards	Dolby® Vision
HDR standards	HDR10
HDR standards	HDR10+
HDR standards	HLG (Hybrid Log-Gamma)
Video bandwidth	48 Gbps
Copy protection	HDCP 1.4
Copy protection	HDCP 2.2
Copy protection	HDCP 2.0
Copy protection	HDCP 2.3
Video resolution	4K 120 Hz RGB/YCbCr 4:4:4 12 Bit
Video resolution	8K 30 Hz RGB/YCbCr 4:4:4 12 Bit
Video resolution	8K 60 Hz YCbCr 4:2:0 12 Bit
Colour depth	10 Bit
Colour depth	12 Bit
Colour depth	8 Bit
Colour space	RGB
Colour space	YCbCr 4:2:0
Colour space	YCbCr 4:2:2
Colour space	YCbCr 4:4:4
HDMI audio formats	DSD
HDMI audio formats	DTS
HDMI audio formats	DTS-HD Master Audio
HDMI audio formats	DTS-HD High Resolution Audio
HDMI audio formats	DTS:X
HDMI audio formats	DTS 96/24
HDMI audio formats	Dolby® Atmos
HDMI audio formats	Dolby® Digital EX (AC3)
HDMI audio formats	Dolby® TrueHD
HDMI audio formats	PCM 2.0
HDMI audio formats	PCM 5.1
Digital audio de-embedding	DTS
Digital audio de-embedding	Dolby® Digital (AC3)
Digital audio de-embedding	PCM 2.0
Digital audio de-embedding	PCM 5.1
Video scaling	4K 120 Hz RGB/YCbCr 4:4:4 12 Bit
Video scaling	8K 30 Hz RGB/YCbCr 4:4:4 12 Bit
Video scaling	8K 60 Hz YCbCr 4:2:0 12 Bit

Serial Interface

Supported standards	RS-232
Baud rate	115,200
Baud rate	19,200
Baud rate	38,400
Baud rate	4,800
Baud rate	57,600
Baud rate	9,600
Connector count	1

External control

Interfaces for ext. control	IR transmitter (IR blaster)
Interfaces for ext. control	Serial interface
Interfaces for ext. control	TCP/IP
Interfaces for ext. control	Web graphical user interface
IR blaster output level	12 Vp-p
