The Questra® Touchscreen Panel 5" is powered by Andriod 11 OS and designed to control LD integrated systems solutions and other professional audio and video applications. Install the QUESTRA® Panel app to control your custom panels, designed with the QUESTRA® software. With this display, you can conveniently and intuitively control your audio settings, lighting and other building functions.
The LD Systems QTP 5 features universal wall mounting options as well as PoE (Power over Ethernet) making installation a breeze. If you require an alternative power source, an optional power supply is also available.
This display in combination with the QUESTRA® Panel app is the perfect choice for professional AV integrators seeking a user-friendly solution for their clients.

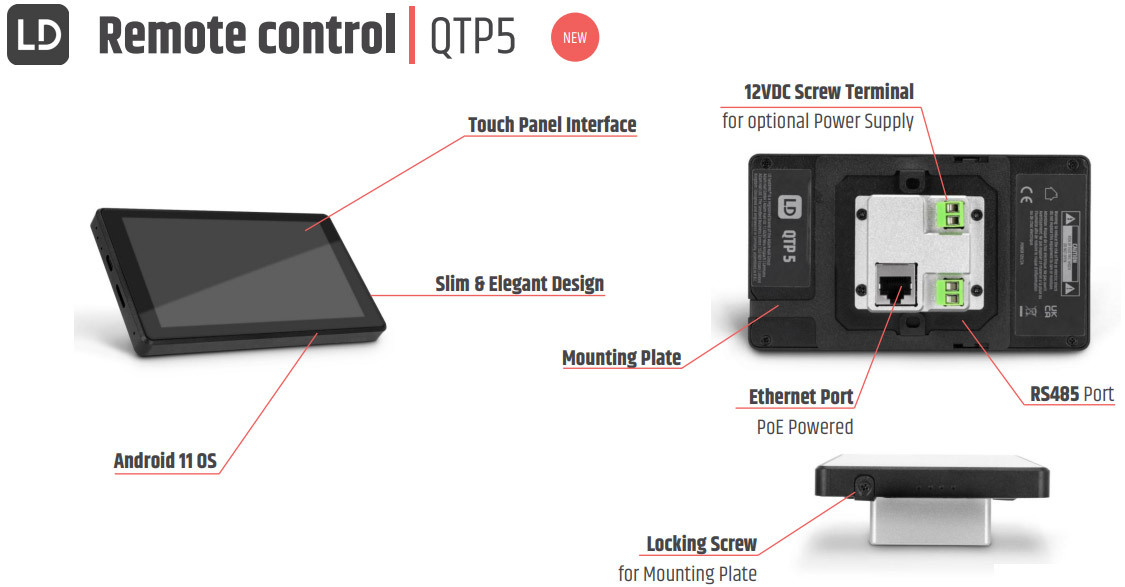

- 5-inch touchscreen Panel
- Android 11 OS
- Control of custom Questra User Panels
- Designd for LD Integrated Systems solutions
- Universal Wall mounting Options
- PoE powered (Power over Ethernet)
- Optional: Power Supply
| Product type | Installation Accessories |
| Type | 5.5" QUESTRA Touchpanel |
| Processor | RK3566 - Quad-core up to 1.8 GHz |
| RAM | 2 GB |
| Internal memory | 16 GB |
| Controls | 5.5" touch display |
| Controls | Restart |
| Controls | Set |
| Display resolution | 1280 x 720 Pixel |
| Display brightness | 300 nits |
| Touch panel type | 5-points capacitive IPS Touch Panel |
| Mounting position | Landscape or portrait format (landscape format recommended) |
| Operating system | Android 11 |
| Connectors | Ethernet RJ45 |
| Connectors | Power in |
| Connectors | RS485 (currently without function) |
| Card reader | TF-Card / MicroSD |
| Connection | 10M / 100M Ethernet |
| Connection | 2.4 GHz WIFI |
| Connection | Bluetooth 4.0 |
| Power supply | External power supply unit 12 V DC 2 A (optionally available) |
| Power supply | IEEE 802.3at compliant |
| Power supply | PoE ( Power over Ethernet ) |
| Mounting options | 86-Type Electrical Box |
| Mounting options | EU - flush-mounted box |
| Dimensions (W x H x D) | 145.7 mm x 84 mm x 38 mm |
| Operating temperature | 0° - 40°C |
| Relative Humidity | < 80 % ( non-condensing ) |
| Accessories (included) | Mounting plate plus locking screw |
| Accessories (included) | Mounting screws |
| Optional accessories | External power supply 12 V DC 2 A |
| Weight | 0.32 kg |
