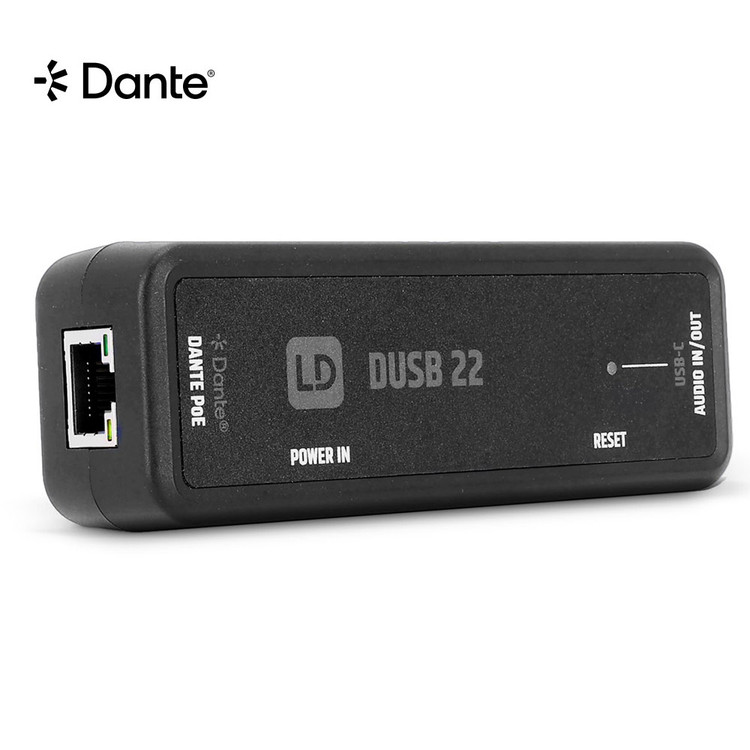

The 2×2 Dante® USB-C Audio Adapter is a compact, bidirectional Dante® to USB-C audio interface for integrating computers and USB-C devices into professional networked audio systems. It supports true plug & play operation via USB Audio Device Class 2.0, while routing and device settings are easily managed in Dante® Controller. With AES67 RTP support, it also enables wider interoperability in mixed-network environments.
The adapter delivers high-resolution 24-bit audio at 48 / 96 kHz and offers selectable latency options of 1, 2, or 5 ms to match system requirements. For flexible deployment, it can be powered via PoE or locally via USB-C, and its compact, durable housing makes it ideal for portable use, temporary and fixed setups.

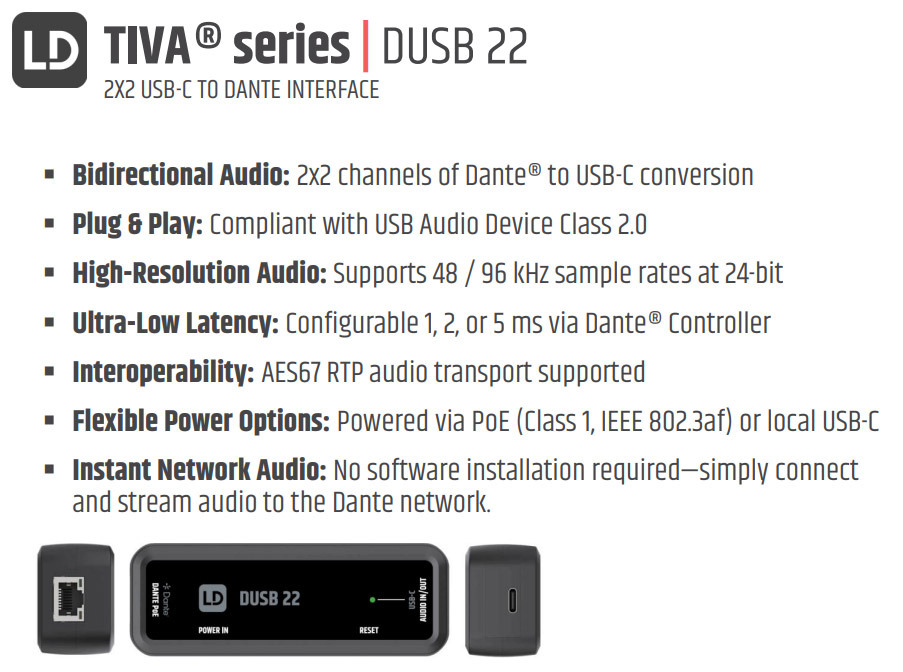

- Bidirectional Dante® to USB-C audio interface
- Plug & Play via USB Audio Device Class 2.0
- Configurable via Dante® Controller
- AES67 RTP support for wider network interoperability
- High-resolution audio: 24-bit at 48 / 96 kHz
- Selectable latency: 1, 2, or 5 ms
- Powered via PoE or local USB-C
- Compact, durable housing for portable use
General
| Material | Plastic |
| Frequency response (±1 dB, rel. Avg) | 20 - 20,000 Hz |
| Colour | Black |
USB connection
| Connector type | USB-C socket female |
| USB standard | USB 2.0 High-Speed |
| Max. data rate | 480 Mbps |
Inputs
| Number of Dante® inputs | 1 |
| Dante® connector type | RJ-45 socket |
Dante®
| Channel configurations | Stereo (2 channels) |
| Sample rate | 48 kHz |
| Bit depth | 16 Bit |
| Bit depth | 24 Bit |
Signal processing
| Audio formats | PCM 2.0 |
| Internal processing resolution | 16 Bit |
| Internal processing resolution | 24 Bit |
| Internal sampling rate | 44.1 kHz |
| Internal sampling rate | 48 kHz |
| Internal sampling rate | 88.2 kHz |
| Internal sampling rate | 96 kHz |
Mains operation
| Operation voltage | PoE (44 V DC - 57 V DC, IEEE 802.3af Class 0) |
| Operation voltage | USB bus powered (5 V DC / 500 mA) |
| Rated power | 1.65 W |
| Mains connector | RJ-45 socket |
| Mains connector | USB-C socket female |
Environmental
| Application area | Indoor |
| Ambient temperature | 0 - 40 °C |
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 115 mm |
| Height | 28 mm |
| Depth | 40 mm |
| Weight | 94 g |
